HannaBox

Microcontroller

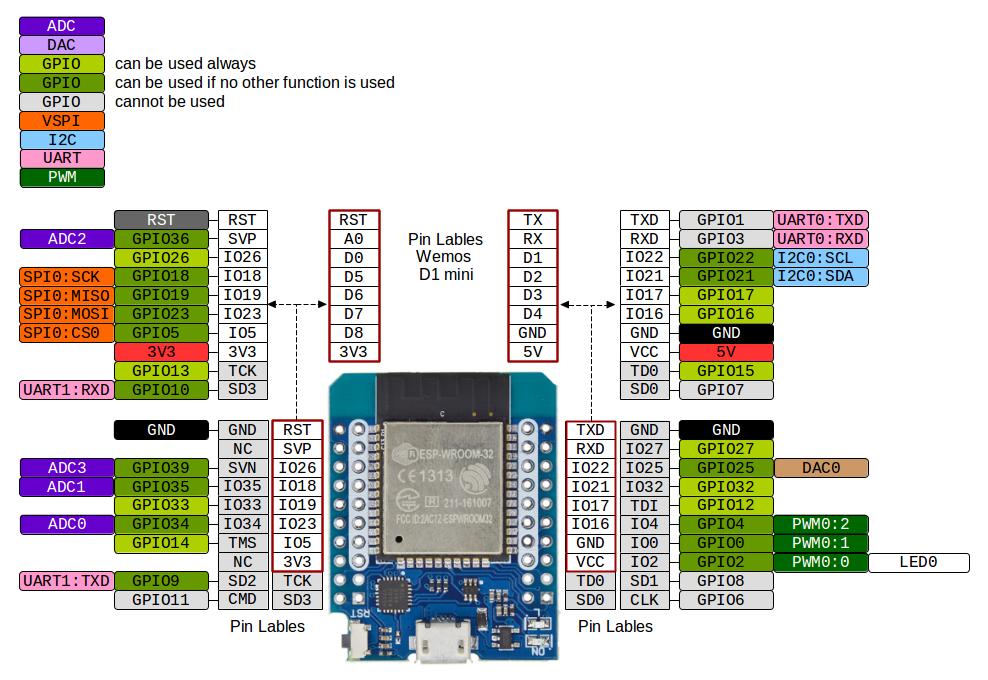

D1 Mini ESP32 Due to mp3 playback it needs a multicore esp 32:

This library only works on multi-core ESP32 chips like the ESP32-S3. It does not work on the ESP32-S2 or the ESP32-C3 warning

Pins

Amplifier

26 -> DIN
27 -> BCLK
25 -> LRC
5V -> Vin
GND -> GND

SD Card

CS -> 22 (D1)
MOSI -> 23 (D7)
CLK -> 18 (D5)
MISO -> 19 (D6)

RFID Reader

SOA -> 32
SCK -> 18
MOSI -> 23
MISO -> 19
IRQ -> NC
GND -> GND
RST -> 33
3.3V -> 3.3V

Registers

Writing 0x7F to the "ComIEnReg" means the following:

    Bit 7: IRqInv=0 - Interrupts are active high
    Bit 6: TxIEn=1 - Transmitter interrupt is enabled
    Bit 5: RxIEn=1 - Receive interrupt is enabled
    Bit 4: IdleIEn=1 - Idle interrupt is enabled
    Bit 3: HiAlertIEn=1 - "High Alert" interrupt is enabled
    Bit 2: LoAlertIEn=1 - "Low Alert" interrupt is enabled
    Bit 1: ErrIEn=1 - Error interrupt is enabled
    Bit 0: TimerIEn=1 - Timer interrupt is enabled

The bits in the register "ComIrqReg" have the following meaning:

    Bit 7: Set1 - when written as 1, a bit value of 1 in bits 6-0 of the byte written set the corresponding register bit; when written as 0, bits 6-0 clear the corresponding register bit
    Bit 6: TxIRq - Set when the last bit of Tx data has been sent
    Bit 5: RxIRq - Set when the receiver detects the end of a valid data stream
    Bit 4: IdleIRq - Set when the CommandReg changes the command field to the idle command
    Bit 3: HiAlertIRq - Set when the Status1 register HiAlert bit is set
    Bit 2: LoAlertIRq - Set when the Status1 register LoAlert bit is set
    Bit 1: ErrIRq - Set when any bit in ErrorReg gets set
    Bit 0: TimerIRq - Set when the TCounterValReg decrements to zero

Writing 0x14 to the "DivIEnReg" has the following meaning:

    Bit 7: IRQPushPull=0 - IRQ is an open-drain output pin
    Bit 6: reserved=0 - no known effect
    Bit 5: reserved=0 - effect unknown
    Bit 4: MfinActEn=1 - Allow the MFIN active interrupt request to trigger IRQ
    Bit 3: reserved=0 - boundedly undefined
    Bit 2: CRCIEn=1 - Permit the "DivIrqReg" bit CRCIRq to trigger IRQ
    Bit 1: reserved=0 - do not set to 1 on pain of nothing
    Bit 0: reserved=0 - has no purpose other than to confuse

The register "DivIrqReg" corresponds to "DivIrqEn", and has the following bit definitions:

    Bit 7: Set2 - when written as 1, a bit value of 1 in bits 6-0 of the byte written set the corresponding register bit; when written as 0, bits 6-0 clear the corresponding register bit
    Bit 6: reserved - don't ask
    Bit 5: reserved - don't tell
    Bit 4: MfinActIRq - MFIN is active
    Bit 3: reserved - just leave it at zero and back away slowly
    Bit 2: CRCIRq - when 1, the CalcCRC command is active and all data is processed
    Bit 1: reserved - nothing to see here
    Bit 0: reserved - are you feeling lucky, punk?

Interrupt method was not working because it seems reading a card does not trigger one.

See https://arduino.stackexchange.com/a/76285 and https://github.com/miguelbalboa/rfid/blob/master/examples/MinimalInterrupt/MinimalInterrupt.ino

Buttons

Start / Stop -> 17 and GND
Wake up / Next -> 04 and GND
Previous -> 16 and GND

System sounds

Place these sounds in the folder system on the SD card:

• sleep.mp3
• start.mp3

sleep.mp3 will be played just before the timed shutdown, start.mp3 will be played if the box started and initialized successfully.

TODOs

• Card Reader with SPI. Configure hspi, second SPI channel? Or does SD Card + RFID run at the same channel?

Schematic without modules

Charging circuit

https://ww1.microchip.com/downloads/en/AppNotes/01149c.pdf MCP73837 ?

Links

https://github.com/earlephilhower/ESP8266Audio

Running two SPI devices at once
