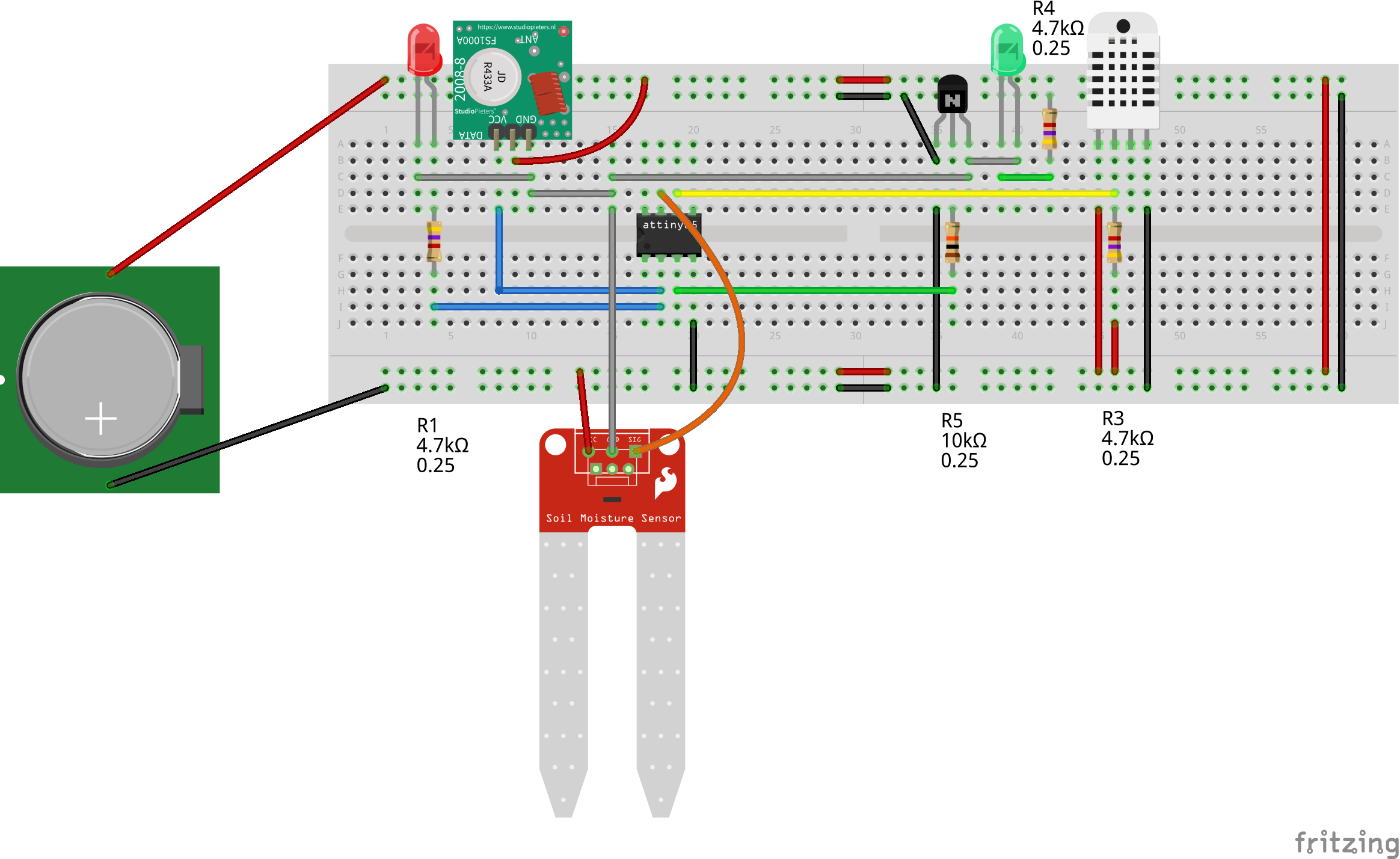

sensor_Steckplatine.png	removed boost converter, fixed leds	2021-04-17 15:25:19 +02:00

README.md

Sensor Module with 433 Mhz Sender

Build

Copy config.h.example to config.h and set your project specific settings there.

flash attiny with minipro on linux and the TL866II plus after compiling:

minipro -p attiny85 -w .pio/build/attiny85/firmware.hex

flash fuses

minipro -p attiny85 -c config -w fuses.config

read fuses

minipro -p attiny85 -c config -r fuses.out
